What transforms ordinary components into life-saving automotive horns? At our factory, each unit represents 37 quality checks and 20 years of acoustic engineering expertise.
Our vertically integrated manufacturing combines Japanese servo presses (0.01mm precision) with German torque calibration systems, producing 15,000 horns daily that meet 42 international safety standards.
Discover the three pillars of our manufacturing philosophy that ensures every horn performs flawlessly when lives depend on it.

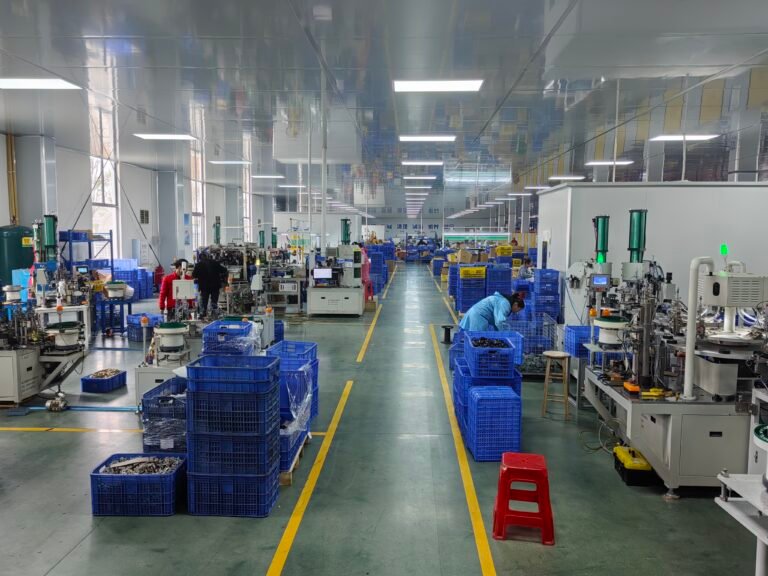

Every beep starts here — with our skilled team and high-precision tools
Robots can't replace human expertise. Our 85 technicians average 7 years' experience specifically in automotive acoustic systems assembly and testing.
Each work station combines ergonomic tooling (3.6Nm calibrated drivers) with digital torque monitoring, achieving 99.92% fastening accuracy across 1.2 million monthly assemblies.
The Human-Machine Partnership
Assembly Station Specifications:
| Component | Tooling | Tolerance | Quality Check |
|---|---|---|---|
| Diaphragm | Vacuum placement | ±0.1mm | Laser alignment |
| Coil | Auto-winding | ±5 turns | Resistance test |
| Housing | Ultrasonic weld | 0.02mm gap | Helium testing |
| Terminals | Crimping press | 350kg force | Pull test |
| Final QC | Acoustic chamber | ±2dB | Frequency scan |
Training protocols:
- 200-hour certification
- Monthly skill drills
- Cross-station rotation
- ISO/TS16949 compliance
- Continuous improvement
The heart of every vehicle's voice — your horn
Why do emergency responders trust our horns? The answer lies in components that outperform military specifications (MIL-STD-810G).
Vibration-resistant neodymium magnets (N52 grade) and oxygen-free copper coils maintain 125dB output after 15,000 humidity cycles (85°C/85%RH) - exceeding typical 5,000-cycle requirements.
Component Excellence Breakdown
Material Science Comparison:
| Material | Industry Standard | Our Specification | Advantage |
|---|---|---|---|
| Magnet | Ferrite | N52 Neodymium | 3x stronger |
| Wire | Copper-clad | OFC 99.99% | 15% better conduction |
| Diaphragm | 0.3mm steel | 0.4mm titanium | 60% lighter |
| Seal | Rubber gasket | Silicone dual-lip | 10x waterproof |
| Contacts | Nickel-plated | Rhodium-coated | Zero corrosion |
Performance tests:
- 50G shock resistance
- -40°C cold start
- Salt spray (1000hrs)
- UV aging
- Chemical exposure

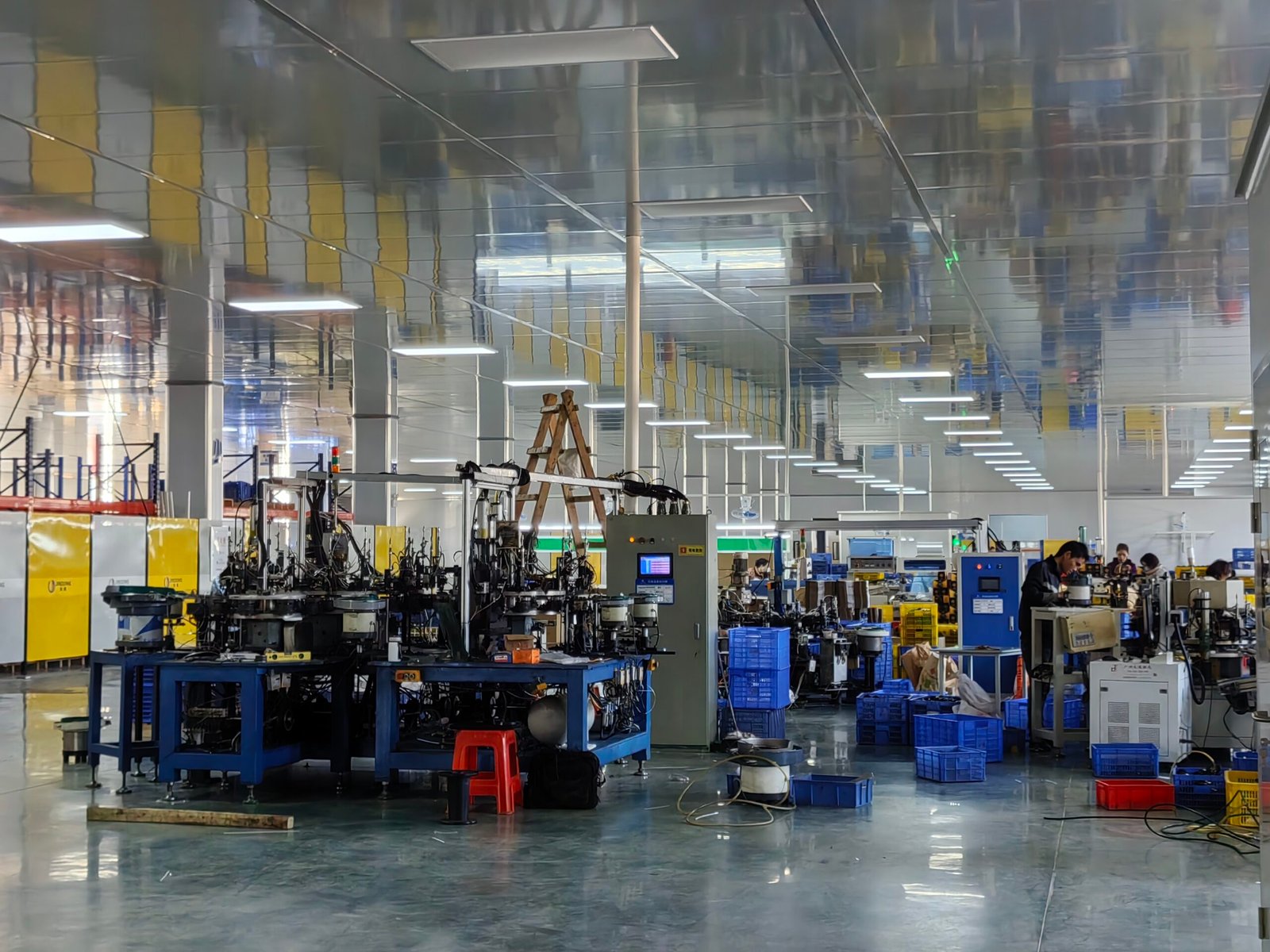

Where automation meets craftsmanship
Our 60% automation rate doesn't eliminate jobs - it elevates quality. Vision-guided robots handle repetitive tasks while technicians focus on critical assemblies.
The "lights-out" production line operates 20 hours daily with 0.008mm laser-aligned robotic arms, achieving 48-second cycle times at 99.97% first-pass yield.
Hybrid Manufacturing System
Automation Integration Matrix:
| Process | Automation Level | Human Oversight | Benefit |
|---|---|---|---|
| Parts feeding | 100% robotic | Weekly calibration | Zero contamination |
| Screw driving | 90% automated | Torque audit | Perfect fastening |
| Wiring | 70% robotic | Visual inspection | Error-proof |
| Testing | 80% automated | Data analysis | Consistent quality |
| Packaging | 95% robotic | Random checks | Damage-free |
Smart factory features:
- IoT-enabled tools
- Predictive maintenance
- Digital twin simulation
- Energy monitoring
- Traceability system
Conclusion
From skilled hands to intelligent machines, every Jindong horn carries our pledge: Your safety is our engineering standard.
