That moment when a driver avoids an accident thanks to our horn's instant response is why we obsess over every manufacturing detail.

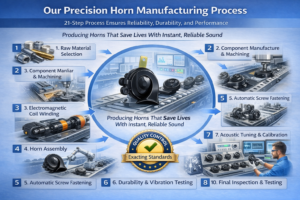

From raw material selection to final testing, our 21-step production process ensures every horn meets exacting standards for reliability, durability, and acoustic performance.
Raw Material Selection and Procurement
The foundation of superior horn quality begins long before production, with rigorous material specifications and supplier vetting.
Core material requirements:
- Electromagnetic coils: Oxygen-free copper (99.99% purity)
- Diaphragms: Cold-rolled steel or titanium alloys
- Contacts: Rhodium-plated tungsten (500,000 cycle rating)
- Housing: Powder-coated zinc alloy (IP67 rated)
- Resonators: Glass-reinforced polymers
Material Specifications Comparison
| Component | Standard Grade | Premium Grade | Military Grade |
|---|---|---|---|
| Copper Wire | 99.9% purity | 99.99% purity | Cryo-treated |
| Steel Diaphragm | 0.3mm thickness | 0.5mm thickness | 0.8mm titanium |
| Contact Points | Silver-plated | Rhodium-plated | Iridium alloy |
| Housing | ABS plastic | Zinc alloy | Marine-grade SS |
| Gaskets | Rubber | Silicone | Fluorosilicone |
Production Process and Technology Flow
Our automated production lines blend advanced robotics with skilled craftsmanship to achieve millimeter-perfect consistency.
Key production stages:
- Coil winding (computer-controlled tension)
- Diaphragm forming (hydraulic pressing)
- Assembly (torque-controlled robotics)
- Tuning (anechoic chamber testing)
- Weatherproofing (3-stage coating)
Production Stage Metrics
| Process | Cycle Time | Tolerance | Equipment Used | Quality Checkpoints |
|---|---|---|---|---|
| Coil Winding | 12 sec ±0.5 | ±0.01mm | CNC winders | 5 electrical tests |
| Diaphragm Forming | 8 sec | ±0.05mm | 200-ton presses | 3D laser scan |
| Assembly | 22 sec | ±0.1mm | Robotic cells | X-ray inspection |
| Sound Tuning | 15 sec | ±2dB | Anechoic chamber | FFT analysis |
| Final QC | 30 sec | 100% check | Automated station | 17 parameters |
Quality Control and Testing Standards
Every horn undergoes 43 individual quality checks before earning our certification mark, ensuring reliability in extreme conditions.
Comprehensive testing protocols:
- Vibration testing (5-2000Hz sweeps)
- Thermal cycling (-40°C to 125°C)
- Salt spray corrosion (500+ hours)
- Water immersion (IP67/IP69K)
- Acoustic endurance (50,000+ cycles)
Certification Testing Requirements
| Standard | Test Criteria | Duration | Pass Requirements | Our Performance |
|---|---|---|---|---|
| ECE R28 | Sound output | 24h | ≥104dB | 108-112dB |
| SAE J377 | Vibration | 100h | No failures | 0 defects |
| ISO 7637 | Electrical | 50 cycles | Full function | 100% compliance |
| IP67 | Waterproof | 30min | No ingress | 1m depth safe |
| OEM-X | Life cycle | 50k cycles | ≤3dB drop | <1dB variation |
Conclusion
Through uncompromising material selection, precision manufacturing, and exhaustive testing, we deliver horn solutions that drivers can trust when seconds matter most.
